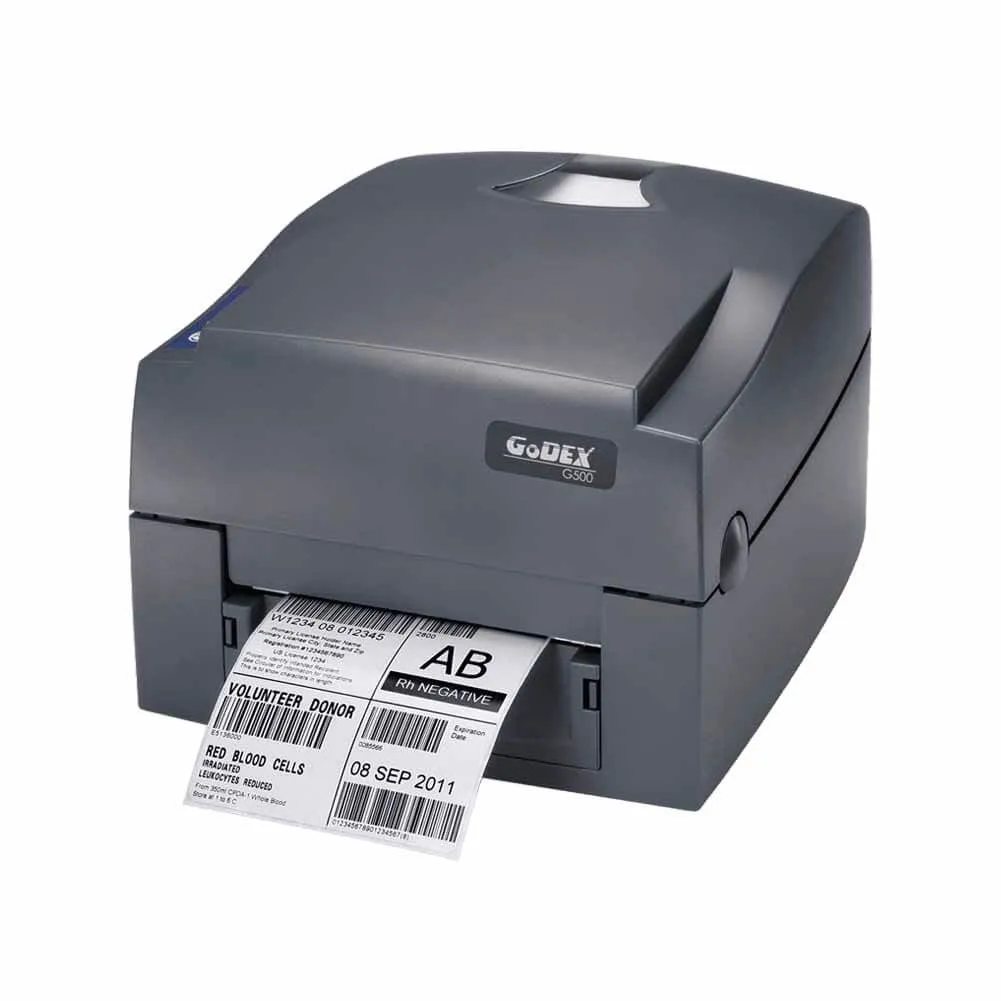

G500 UES Desktop Thermal Label Printer

Key Features:

High Volume Printing - 300-meter ribbon and optional label stand for extended printing sessions.
Versatile Label Compatibility - Twin-sensor technology handles a wide range of label types.
Flexible Connectivity - Choose USB, Serial, Ethernet, or Parallel for easy integration.
Specialty Material Printing - Perfect for retail and industrial applications on various materials.
Durable Design - Built tough for long-lasting performance.

Specifications:

Key Features

High Volume Printing - 300-meter ribbon and optional label stand for extended printing sessions.
Versatile Label Compatibility- Twin-sensor technology handles a wide range of label types.
Flexible Connectivity - USB for seamless integration.
Durable Design- Built tough for long-lasting performance.
Specialty Material Printing - Perfect for retail and industrial applications on various materials.

Specifications:

Print Method - Thermal Transfer / Direct Thermal

Resolution - 203 dpi (8 dots/mm)

Print Speed - 5IPS (127 mm/s)

Print Width - 4.25″ (108 mm)

Print Length - Min. 0.16” (4 mm)**; Max. 68” (1727 mm)

Processor - 32 Bit RISC CPU

Memory - 8MB Flash (4MB for user storage) / 16MB SDRAM

Sensor Type - Adjustable reflective sensor. Fixed transmissive sensor, central aligned

Media-

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max.
Thickness: 0.0024” (0.06 mm) Min. – 0.01” (0.25 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5”, 3″ (25.4 mm, 38.1 mm, 76.2 mm)

Ribbon-
Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)

Printer Language - EZPL, GEPL, GZPL auto switch

Software -
Label design software: GoLabel (for EZPL only)
Driver: MAC、 Linux、Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android

Resident Fonts -
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts：TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Download Fonts -
Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Barcodes-
1-D Bar codes:
Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39

Code Pages-
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16BE, UTF16LE

Graphics - Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

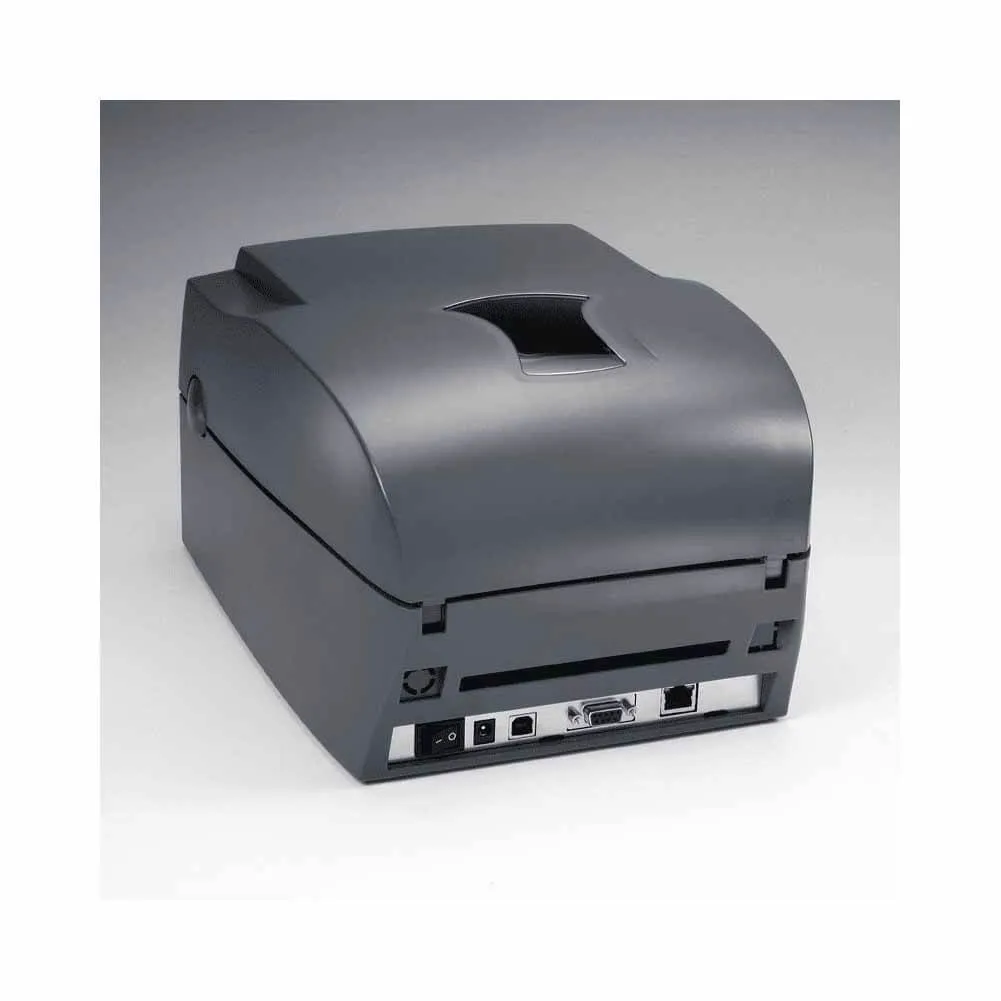

Interfaces-
USB + Parallel Port
USB + Serial Port + Ethernet

Control Panel -
Two bi-color status-LEDs: Ready, Status
Control key: FEED

Power- Auto Switching 100-240VAC, 50-60Hz

Environment-
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity -
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals- CE (EMC), FCC Class A, CB, CCC, cUL, KCC, BIS, EAC

Dimension -
Length: 11.2” (285 mm)
Height: 6.8” (171 mm)
Width: 8.9” (226 mm)

Weight - 5.51 lbs (2.5 Kg), excluding consumables

Options -
Cutter Module
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder

Note * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.
** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
